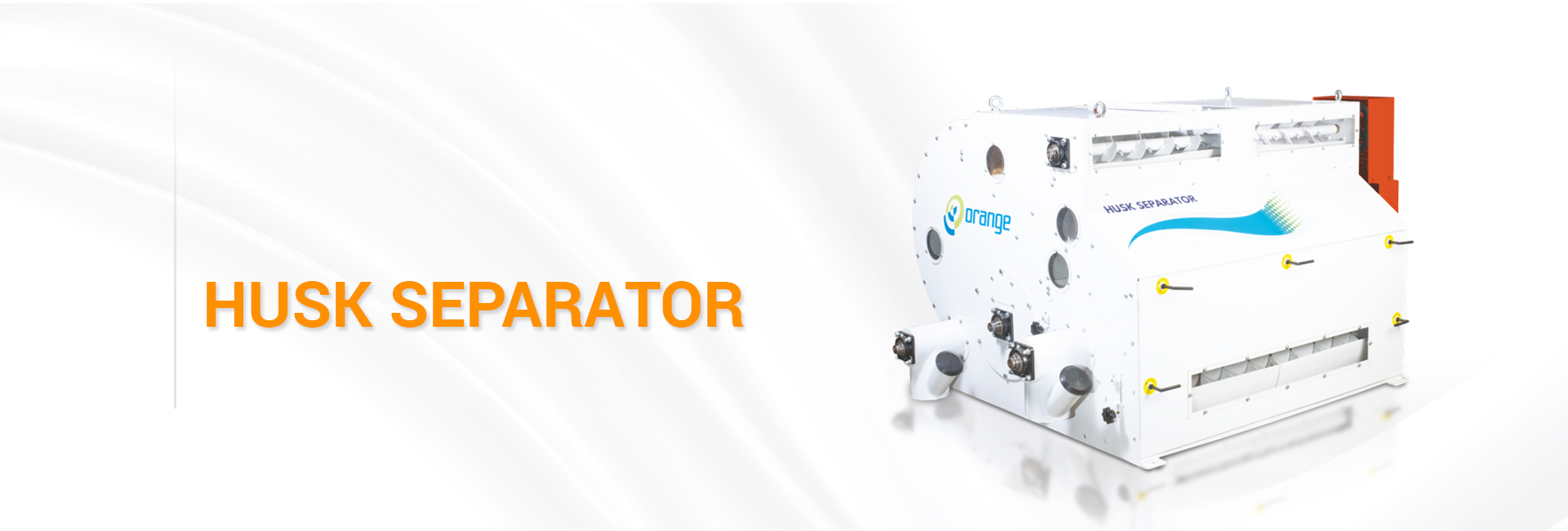

Husk Separator

The Husk Separator is a machine which helps to separate brown rice, rice husk and dust. An aerodynamically designed structure helps the machine to work to its fullest performance.

Inbuilt Blower
Inbuilt Blower

The use of an inbuilt blower creates internal air circulation to work effectively.

Low Maintenance
Low Maintenance

There are no critical factors for maintenance.

Adjustable flaps
Adjustable flaps

Fine adjustments are made very easily with easy- handling flaps from exterior

Supported Commodities
Models & Technical Specification
Model HSR 04 HSR 06
Capacity (TPH) 2.5 to 3 5 to 6
Motor Power (HP) 5 5
Weight (Kg) 750 900
Dimension LxBxH (mm) 1756 x 1724 x 1150 1850 X 2200 X 1270
Blower Motor Power (KW/HP) Ventury - 7.5 HP Ventury 10 HP
Result
Input

Output

Brown Rice and Husk

Brown Rice and Husk

Paddy

Husk

Brown Rice

Frequently Asked Questions

What size of rubber roller is used in Sheller?

The size of the rubber roller varies depending upon the mill capacity of a rice mill. We use 10x10 and 12x10 rubbers

How long rubber roller last?

Since rubbers are soft in nature, they wear too often. Moreover, the life of rubber cannot be specified approximately. Preceding processes such as destoning and cleaning are done properly

How does sheller work?

Sheller is a pneumatic (Air) operated Rubber roller, two rubber running at different RPM from each other. This difference shells the husk from the paddy when the paddy gets in between two rubber rolls

How does Husk Separator Work?

The husk separator follows an ancient method of separating husk from rice. This is done by blowing air adjacent to it, where lighter particles (husk) move away with air and heavier particle (rice) stays in the same place.

How many pneumatic actuators are used? Are they necessary?

There are 2 pneumatically controlled actuators used. Yes, both are important to firmly control the applied pressure evenly even at high tonnage fluctuation for better performance. The force is applied from each side of rubber called the forward and reverse pressure.

What are the other names used for calling sheller and Husk separator?

Sheller is otherwise called DE-HUSKER and Husk separator is otherwise called HUSKER or HUSK ASPIRATOR.
