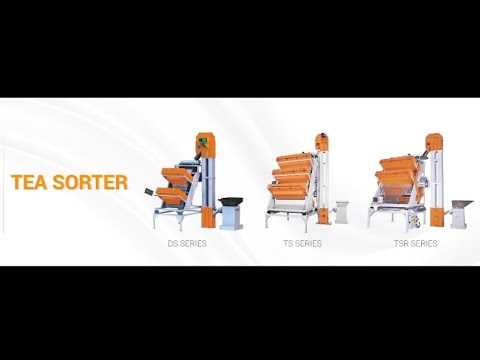

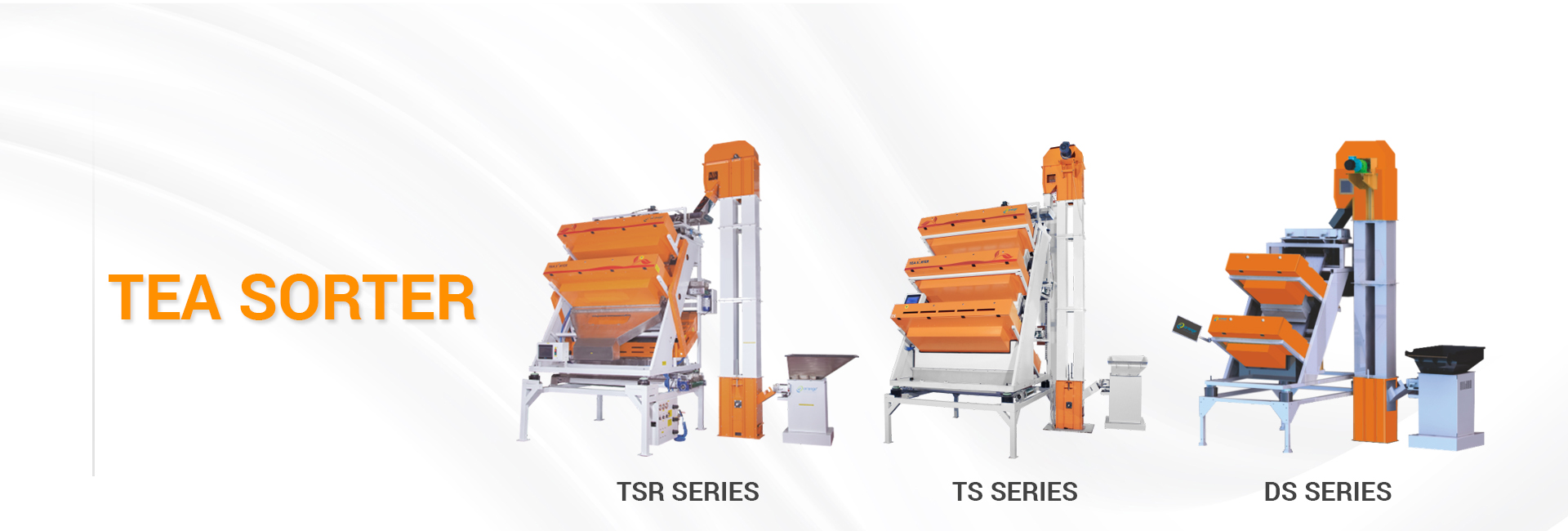

Tea Sorter
The Tea Sorting Machine by Orange is designed to deliver precision, consistency, and efficiency in tea grading and quality control. Built with advanced technology, this machine ensures accurate separation of tea leaves based on size, color, and texture, enhancing the overall quality and uniformity of the final product.
High sensitivity, High resolution, High speed camera with 12,288 pixels and built in Binning option.
Camera with 60,000 scans per second, Image processor gets 12,28,80,000 pockets of pixel data in one second .
American FPGAs with 50 million gates fabricated using 28 nano meter advanced technology.
PCBs are Gold Coated for very high quality and enhanced life.
| Stage | Double Stage | Tripple Stage | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Modal Name | 2DS | 4DS | TS9 | TS12 | TS15 | 9TSR | 12TSR | 15TSR | |
| Capacity Specifications | Processing Capacity (Kg / H * r) | 75-152 | 150-250 | 225-425 | 300-550 | 375-675 | 255-425 | 300-550 | 375-675 |
| Electrical Specifications | Voltage(v) | AC 220V 50HZ | |||||||
| Power(KVA | 3 | 5 | 7.5 | 10 | 10 | 7.5 | 10 | 10 | |
| Penumatic Specifications | Air pressure required kg/square | 6.1-8.1 | |||||||
| Air Required (CFM) | 30 | 60 | 90 | 110 | 130 | 90 | 110 | 130 | |
| Mechanical Specifications | Weight Max. (kg) | 900 | 1450 | 1450 | |||||
| Dimension in mm (LxWxH) | 1360 * 2000 * 2700 | 2500 * 2100 * 3700 | 2500 * 2100 * 3700 | ||||||
| Dimension in feet inches" (LxWxH) | 5.9' * 7.3' * 7.9' | 8.3' * 6.11' * 12.2' | 8.3' * 6.11' * 12.2' | ||||||
This specification is applicable for Tea product Sorting size of Leaves = 15 mm.
Sorting performance depends upon Variety, Input contamination and condition of raw material. The capacity range given is for = 10% contamination.
Capacity means Throughput" and it depends upon the type of product and contamination % present in the input product quality.
Air consumption will be more in case of higher rejection rate for raw materials with higher contamination.
Technical Specifications may change without prior information due to continuous R&D.
