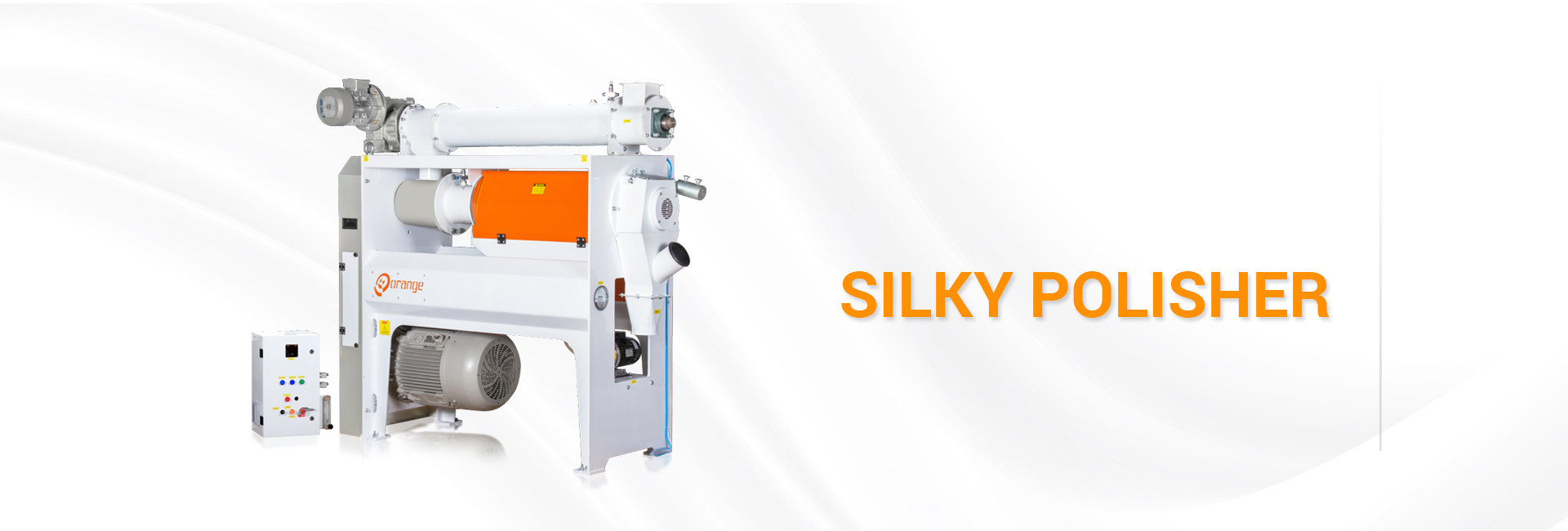

Silky Polisher

Silky polishes the outer surface of the rice with water through a rotating camshaft. Silky polisher comes with an inbuilt water atomizer system that sprays water evenly over rice and passes through a camshaft roller. Due to friction polishing and water mixture, the glazing rice resulted.

Water Jet Atomizer
Water Jet Atomizer

A water jet nozzle spreads water evenly all over rice, this gives an uniform glazing over rice

PLC Circuit
PLC Circuit

Some of the critical sequence of operations such as water cut off during over load is done automatically.

Air Pressure Gauge & Regulator
Air Pressure Gauge & Regulator

Inbuilt Gauges are given to measure and control the air pressure inside polishing chamber

Screen
Screen

Most important and most critical part in machine made of hardened steel responsible for perfect glazing

Supported Commodities
Models & Technical Specification
Model SKY 03 SKY 04 SKY 06
Capacity (TPH) 2.5 to 3 3 to 4 5 to 6
Motor Power (HP) 40 50 60
Motor RPM 1440 1440 1440
Total Screens 4 4 4
Screen Length (mm) 438 438 438
Water Pump (KW/HP) 0.37 / 0.5 0.37 / 0.5 0.37 / 0.5
Weight (Kg) 650 950 1350
Dimension LxBxH (mm) 1800 X 700 X 1500 1800 X 700 X 1500 1800 X 700 X 1500
Blower Motor Power (KW/HP) 3.7 / 5 3.7 / 5 5.6 / 7.5
Cyclone 950L 950L 950L
Bran discharger 8" & 1.5 HP 8" & 1.5 HP 8" & 1.5 HP
Result
Input

Output

Un Polished Rice

Un Polished Rice

Polished Rice

Bran

Frequently Asked Questions

Why does rice clog in the silky output how to solve this issue?

PLC supported rice anti-clog system is introduced to avoid such problem The issue caused because of un-timing water input. Water must be added after the reaching of rice to the camshaft. Turning on water previously might flood the camshaft changer with water which will make the machine clog at the output.
