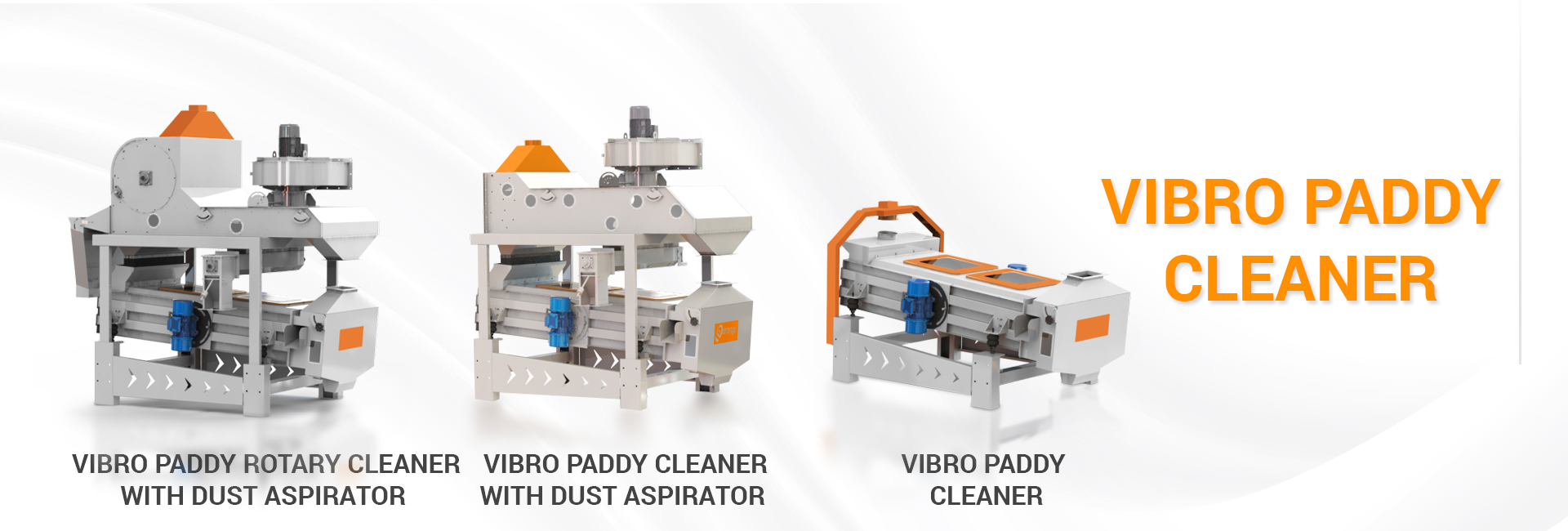

Vibro Paddy Cleaner separator used for removing Oversized and Undersized impurities from grain. This cleaner is configured especially for rice. With an inbuilt aspiration system, the dust accumulated in grain is drastically controlled.
Dual layer sieves give high separation efficiency
Fine Dust carried with paddy is completely removed
Combinations of two are used for even vibration distribution
The machine gives 3 types of different output effortlessly (stone, Dust, Paddy)
| Model | VPC08 | VPA08 | VPR08 | VPC10 | VPA10 | VPR10 |
|---|---|---|---|---|---|---|
| Capacity (TPH Paddy) | 6 to 8 | 6 to 8 | 6 to 8 | 8 to 10 | 8 to 10 | 8 to 10 |
| Vibro Motor Power (HP) | 1 | 1 | 2.5 | 2 | 2 | 3.5 |
| Total layer | 2 | 2 | 2 | 2 | 2 | 2 |
| Screen Size LxW(mm) | 1056 x 996 | 1056 x 996 | 1056 x 996 | 1056 x 1492 | 1056 x 1492 | 1056 x 1492 |
| Dimension LxBxH (mm) | 2700 x 1350 x 1600 | 2700 x 1350 x 1600 | 2700 x 1350 x 1600 | 2700 x 1600 x 1600 | 2700 x 1600 x 1600 | 2700 x 1600 x 1600 |
| Blower Motor Power (HP) | 7.5 HP | 7.5 HP | 7.5 HP | 7.5 HP | 7.5 HP | 7.5 HP |
| Cyclone | 950 | 950 | 950 | 950 | 950 | 950 |
| Bran discharger (HP) | 8" & 1.5 HP | 8" & 1.5 HP | 8" & 1.5 HP | 8" & 1.5 HP | 8" & 1.5 HP | 8" & 1.5 HP |
.png)
Paddy
Paddy
Dust
Discover related products to complement your choice. Explore our diverse range, finding solutions that seamlessly align with your preferences and enhance your overall experience.
Why is Vibro paddy cleaner used?
Vibro paddy cleaner is used after pre-cleaner, mostly fine dust and other minute soil and mud particles are removed here.
How many sleeves does the Vibro paddy cleaner have?
A maximum of two sleeves are used with different perforation sizes
Is Vibro paddy cleaner really necessary inside a rice mill?
Yes, there comes a lot of accumulated soil dust with pre-cleaned paddy. To remove dust and other impurities an aspiration chamber is also provided
