Vertical Rice Blender

Vertical Rice Blender - VRB4000-S is an online rice blending machine, were primary and secondary inputs are made to flow constantly using two adjustable vibrator feeders. Primary input takes in rice where as Secondary input is fed with Fortified rice and giving out perfectly mixed rice at the bottom. The machine is completely constructed of Stainless Steel food-grade material and made completely automatic & smart using 4 level sensors on the hopper mount, to prevent overfilling and underfilling by switching off the vibrator feeder. VRB4000-S is designed in an simplest way where maintainence and cleaning is done just by accessing few fastners.

Dual Vibrator Feeder
Dual Vibrator Feeder

Individually controlled vibrator feeder for full control

Stainless Steel Screw Mixer
Stainless Steel Screw Mixer

Grain passing region is covered with stainless steel.

Dual Input Mixing
Dual Input Mixing

Two input mixing unit for 2 variety of products.

BIS & ISI Certification
BIS & ISI Certification

Machines is made as per the BSI guidelines.

Supported Commodities
Models & Technical Specification
Model VPC 08 VPC 12
Capacity (TPH Paddy) 4 to 8 8 to 12
Vibro Motor Power (HP) 0.5 HP x 2 1 HP x 2
Total layer 2 2
Aspiration Chamber Yes Yes
Dimension LxBxH (mm) 2700 x 1600 x 1600 2700 x 2100 x 1600
Blower Motor Power (HP) 7.5 HP 12.5 HP
Cyclone 950L 1300L
Bran discharger (HP) 6" & 1 HP 6" & 1 HP
Result
Input

Output

Frequently Asked Questions

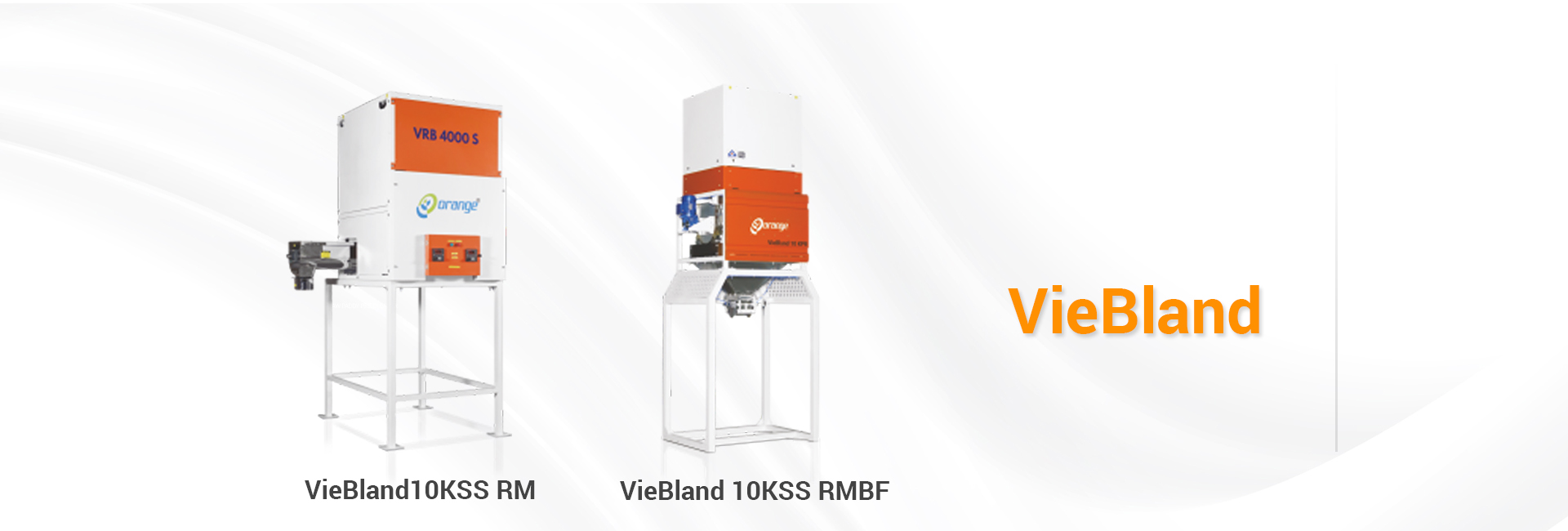

What is the use of VRB 4000? Is VRB and VieBland Same?

VRB is an online flow-controlled ratio mixing blending machine. The flow rate is adjusted and controlled by varying vibrator controllers. No, it’s not the same, VRB’s working process is way more different than the working of VieBland. VieBland is weight-based Blending.
