Orange Brings you an accurate, user-friendly, high-speed packing machine for the industry. SAPM-D75NC uses state art technology in every component of the packing machine. SAPM-D75NC used the imported Load cell which needs less calibration in its life span. The acceptance level of weighing can be calibrated by the user itself. By understanding the requirement of users we have introduced many interesting features in SAPM-D75NC.
| Model | Double Head | |||||
|---|---|---|---|---|---|---|
| Functional Parameters | Filling Range (Kg) | 5 ~ 75 kg | ||||
| Bag Range (Kg) | 5 | 10 | 25 | 50 | 75 | |
| Filling speed (~) (Bags/Hr) | 720 | 550 | 500 | 320 | 260 | |
| Filling speed (~) (Tons/Hr) | 3.6 | 5.5 | 12.5 | 15 | 19.5 | |
| Accuracy (~) (+/-) grams | 20 | 20 | 30 | 40 | 60 | |
| Electrical | Operating Voltage/ Frequency (V/Hz) | 230V AC / 50hz (440V AC If Stitching & Conveyor is used) | ||||
| Power consumption weighing and filling (KW) | 0.5 | |||||
| Power consumption Conveyor (~) ( ) (KW) | 0.75 | |||||
| Power consumption Sticher (~) (Optional) (KW) | 0.35 | |||||
| Electronics | Sensor input | Bridge Type Load Cell | ||||
| Operating Ambient Temperature (°C) | < 40 Deg°C | |||||
| Communication | By SMS with GSM modem or Via Cloud (Optional) | |||||
| Data Logging | On Pen Drive For 30 days, the same data will be available on Cloud (Optional) | |||||
| Display size/Update rate (Inches/Hz) | 7" LCD/0.5 Hz | |||||
| Pneumatic | Air pressure required (Kg/cm2) | 6 ~ 7.5 | ||||
| Air volume required (CFM) | <3 | |||||
| Mechanical | Dimension - Length (mm/ft) | L - 1838 mm / 6.0 ft | ||||
| Dimension - Width (mm/ft) | B - 976 mm / 3.2 ft | |||||
| Dimension - Height (mm/ft) | H - 3050 mm / 10 ft | |||||
| Mounting | On built-in stand by Orange | |||||
| Weight (~) (Kg) | 350 | |||||
Discover related products to complement your choice. Explore our diverse range, finding solutions that seamlessly align with your preferences and enhance your overall experience.
Grain industry recognition and achieve certification with our comprehensive programs, designed to validate your expertise and enhance your professional standing. Unlock new opportunities and accolades.
Copyright © 2025 Orange Sorting Machines. All Rights Reserved.

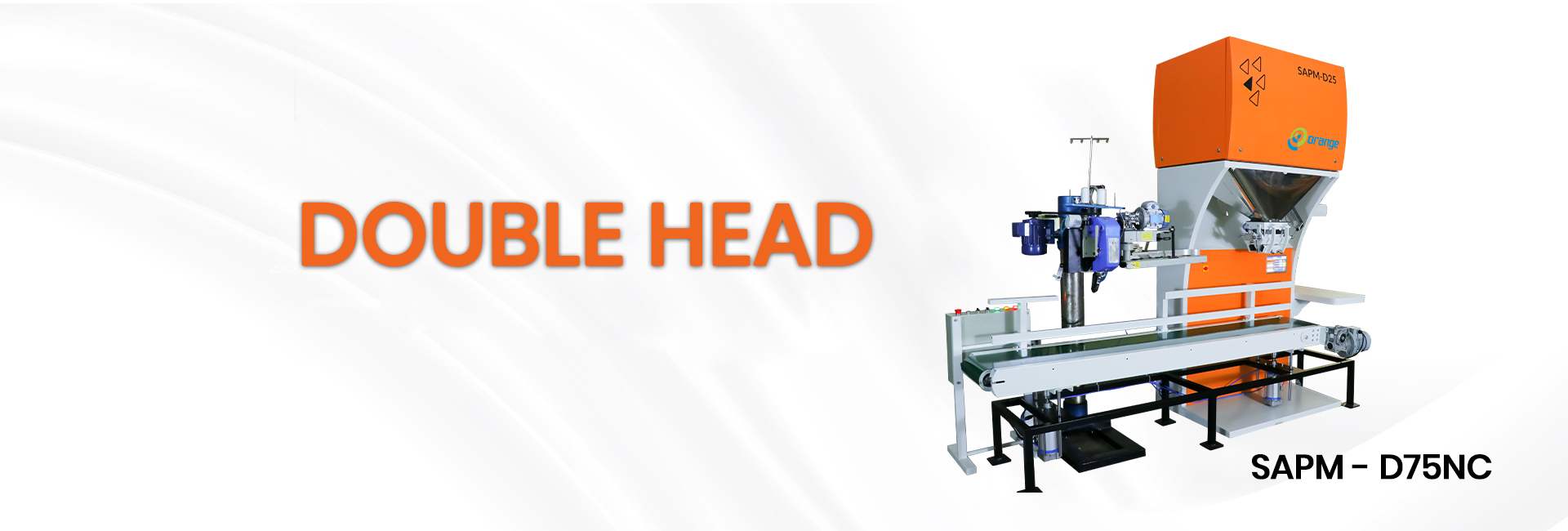

Double Head - SAPM - D75NC
