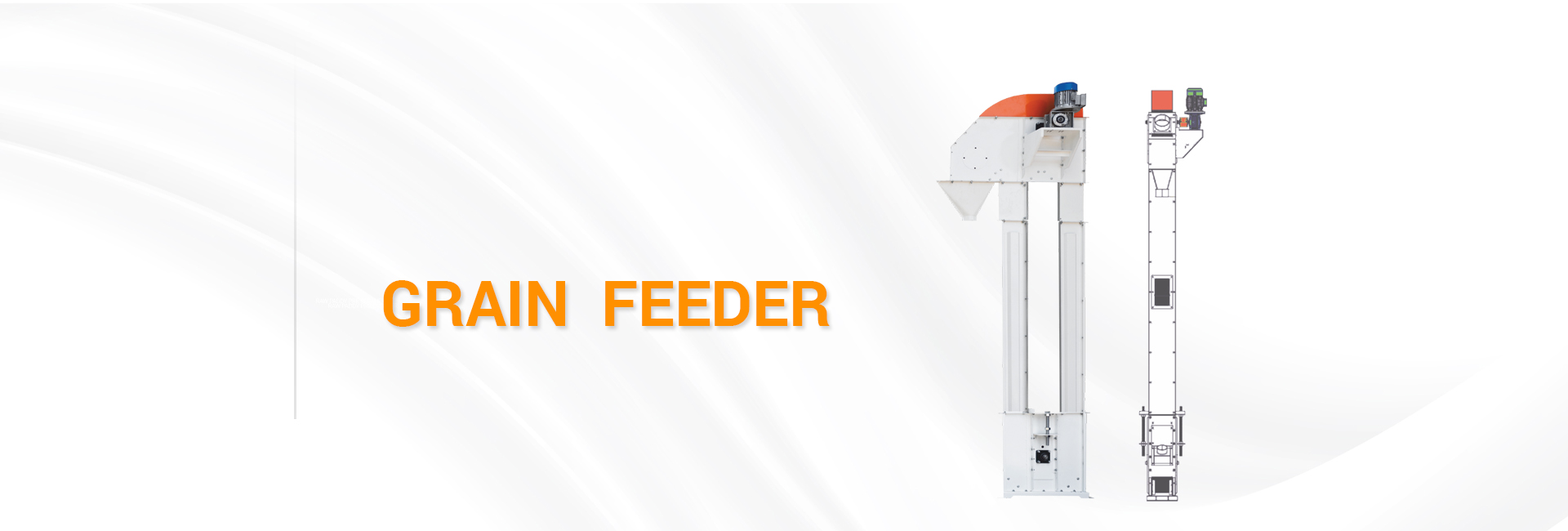

Elevator is one of the most essential product in material handling and movement. Orange elevators are operated using an worm gear fixed motor and run with a calculated surface speed for better output performance.
Food grade belt with Heat resistant upto 120oC, Oil resistant, Odourless, and high bolt tear resistant
Orange is the first company designed with this concept of push and pull blower system
Perfectly designed to avoid crushing of grain between belt and pulley added corner radius to avoid belt damage
Ratio between the maximum lifted volume by bucket (Kg) to the volume of delivery at outlet by bucket (Kg)
Maximum volume of the commodity to be lifted by the bucket at a efficient condition
Introducing unique reference scale helps user to know the stretched condition of belt
| Regular Elevator | ||||||
|---|---|---|---|---|---|---|
| BUCKET SIZE (INCH) | *CAPACITY (TSP) | POWER (KW/HP) | ||||
| PADDY | RICE | Below 30ft | 30ft to 60ft | Above 60 ft | ||
| ELV04 | 4" | 4-5 | 6-7 | 1 HP | 1 HP | |
| ELV04 | 6" | 8-9 | 10-12 | 1 HP | 2 HP | 2 HP |
| ELV08 | 8" | 12-14 | 12-14 | 2 HP | 3 HP | 3 HP |
| Slow Speed Elevator | ||||||
|---|---|---|---|---|---|---|
| BUCKET SIZE (INCH) | *CAPACITY (TSP) | POWER (KW/HP) | ||||
| PADDY | RICE | Below 30ft | 30ft to 60ft | |||
| ELV04 | 4" | 4-5 | 6-7 | 1 HP | 1 HP | |
| ELV06 | 6" | 8-9 | 10-12 | 1 HP | 2 HP | |
| Outdoor Elevator | ||||||
|---|---|---|---|---|---|---|
| BUCKET SIZE (INCH) | *CAPACITY (TSP) | POWER (KW/HP) | ||||
| PADDY | RICE | 30ft to 60ft | Above 60 ft | |||
| ELV08 | 8" | 12-14 | 12-14 | 3 HP | 3 HP | |
| ELV10 | 10" | 26-28 | 26-28 | 5 HP | 7.5 HP | |
| ELV12 | 12" | 35-37 | 35-37 | 7.5 HP | 7.5 HP | |
| ELV14 | 14" | 49-53 | 49-53 | 7.5 HP | 7.5 HP | |
| ELV16 | 16" | 65-68 | 65-68 | 10 HP | 10 HP | |
*Capacity is Calculated Based on Bulk Density by Paddy - 560 kg/m3 Rice - 750 kg/m3 Elevator Cup available in plastic, mild steel, stainless steel material.
