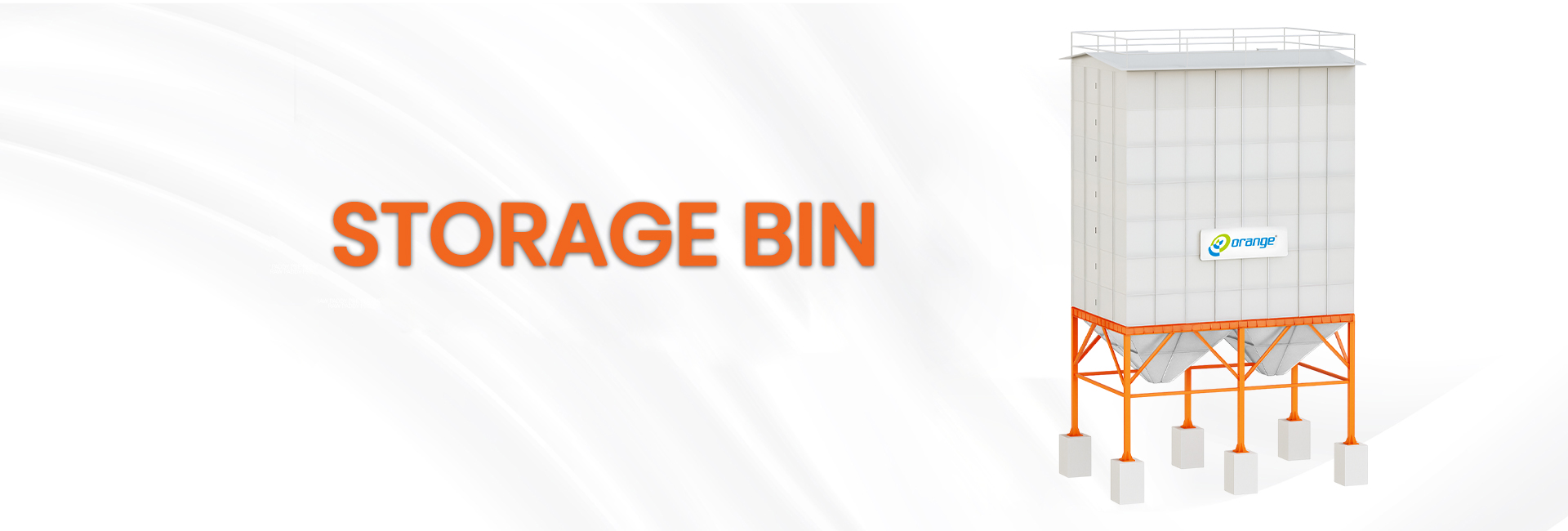

Storage Bin

We are manufacturing Storage Bins designed for safe and efficient grain storage in modern processing plants. Built with durable materials and advanced design, our bins protect grains from moisture, pests, and spoilage while maintaining quality. They ensure easy handling, better space utilization, and long-term preservation for rice and grain mills.

Storage Bin
Get A Quote
View Brouchure
OUR SCOPE
Drawing

Drawing

Materials Supply

Materials Supply

Erection Supervising

Erection Supervising

CUSTOMER SCOPE
Erection

Erection & Commissioning
Charges

Loading

Material On Site
Loading

Crane

Unloading /
Crane

Facilities

Scaffolding
Facilities

Civil & Electrical

Civil & Electrical
Requirements

Transport

Transport
to pay

MANUFACTURING PROCESS
  • Fiber Laser Cutting Machine
  • Press Brake machine (CNC)
  • Welding and Powder Coating
CONSTRUCTION MATERIALS
  • MS - Mild Steel ( 2mm , 2.5mm , 3mm )
  • SS 202 - Stainless Steel 202 ( 1.5mm , 2mm )
  • GI - Galvanised Sheet ( 2mm , 2.5mm , 3mm )

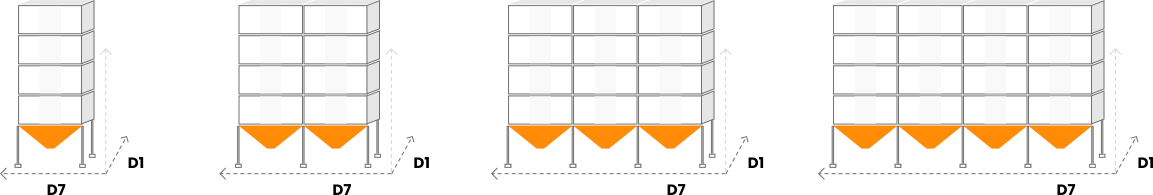

TYPES OF STORAGE BIN CONSTRUCTIONS

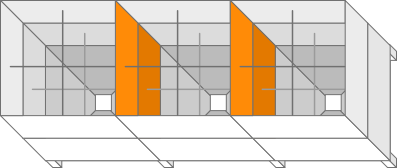

Inside Construction

Storage Bin Inside Construction

Inside Construction
( D7 x D1 ) Feet ( D7 x D1 ) Feet ( D7 x D1 ) Feet ( D7 x D1 ) Feet
8 x 8 16 x 8 24 x 8 32 x 8
10 x 10 20 x 10 30 x 10 40 x 10
12 x 12 24 x 12 36 x 12 48 x 12

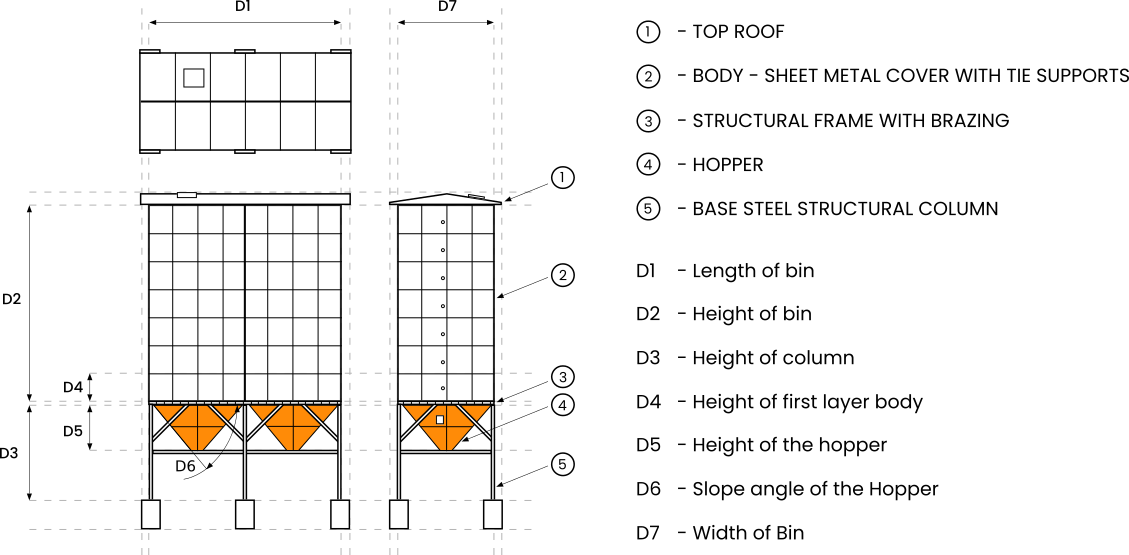

TWO DIAMENTIONAL DRAWING
TWO DIAMENTIONAL DRAWING
Models & Technical Specification
Length x Width x Height (FEET) No of Box Layers WEIGHT & THICKNESS DATA (KG)
CAPACITY DATAS (TONS) PADDY AND RICE BIN HUSK BIN
Paddy Rice Husk 3 MM 2.6 MM 2.0 MM 3.0 MM 2.5 MM 2.0 MM
8 * 8 STORAGE BIN POWDERED
8*8*3.1 1 3.1 TON 3.9 TON 0.9 TON 1,958 1,795 1,628 - - -
8*8*6.2 2 6.2 TON 7.8 TON 1.7 TON 2,308 2,087 1,859 - - -
8*8*9.3 3 9.3 TON 11.6 TON 2.6 TON 2,658 2,379 2,090 - - -
8*8*12.4 4 12.4 TON 15.5 TON 3.5 TON 3,008 2,670 2,321 - - -
8*8*15.5 5 15.5 TON 19.4 TON 4.4 TON 3,358 2,962 2,552 - - -
8*8*18.6 6 18.6 TON 23.3 TON 5.2 TON 3,708 3,253 2,783 - - -
8*8*21.7 7 21.7 TON 27.1 TON 6.1 TON 4,058 3,545 3,014 - - -
8*8*24.8 8 24.8 TON 31 TON 7 TON 4,408 3,836 3,245 - - -
8*8*27.9 9 27.9 TON 34.9 TON 7.8 TON 4,758 4,128 3,470 - - -
8*8*31 10 31 TON 38.8 TON 8.7 TON 5,108 4,419 3,707 - - -
8*8*31 10 31 TON 38.8 TON 8.7 TON 5,108 4,419 3,707 - - -
16*8 STORAGE BIN POWDERED
16*8*3.1 1 2 x 3.1 TON 2 x 3.9 TON 2 x 0.9 TON 3,566 3,250 2,923 - - -
16*8*6.2 2 2 x 6.2 TON 2 x 7.8 TON 2 x 1.7 TON 4,216 3,792 3,352 - - -
16*8*9.3 3 2 x 9.3 TON 2 x 11.6 TON 2 x 2.6 TON 4,866 4,333 3,781 - - -
16*8*12.4 4 2 x 12.4 TON 2 x 15.5 TON 2 x 3.5 TON 5,516 4,875 4,210 - - -
16*8*15.5 5 2 x 15.5 TON 2 x 19.4 TON 2 x 4.4 TON 6,166 5,416 4,639 - - -
16*8*18.6 6 2 x 18.6 TON 2 x 23.3 TON 2 x 5.2 TON 6,816 5,957 5,068 - - -
16*8*21.7 7 2 x 21.7 TON 2 x 27.1 TON 2 x 6.1 TON 7,466 6,499 5,497 - - -
16*8*24.8 8 2 x 24.8 TON 2 x 31 TON 2 x 7 TON 8,116 7,040 5,926 - - -
16*8*27.9 9 2 x 27.9 TON 2 x 34.9 TON 2 x 7.8 TON 8,766 7,582 6,355 - - -
16*8*31 10 2 x 31 TON 2 x 38.8 TON 2 x 8.7 TON 9,416 8,123 6,784 - - -
24*8 STORAGE BIN POWDERED
24*8*3.1 1 3 x 3.1 TON 3 x 3.9 TON 3 x 0.9 TON 5,152 4,686 4,203 - - -
24*8*6.2 2 3 x 6.2 TON 3 x 7.8 TON 3 x 1.7 TON 6,102 5,477 4,830 - - -
24*8*9.3 3 3 x 9.3 TON 3 x 11.6 TON 3 x 2.6 TON 7,052 6,288 5,457 - - -
24*8*12.4 4 3 x 12.4 TON 3 x 15.5 TON 3 x 3.5 TON 8,002 7,060 6,084 - - -
24*8*15.5 5 3 x 15.5 TON 3 x 19.4 TON 3 x 4.4 TON 8,952 7,851 6,711 - - -
24*8*18.6 6 3 x 18.6 TON 3 x 23.3 TON 3 x 5.2 TON 9,902 8,642 7,338 - - -
24*8*21.7 7 3 x 21.7 TON 3 x 27.1 TON 3 x 6.1 TON 10,852 9,434 7,965 - - -
24*8*24.8 8 3 x 24.8 TON 3 x 31 TON 3 x 7 TON 11,802 10,225 8,592 - - -
24*8*27.9 9 3 x 27.9 TON 3 x 34.9 TON 3 x 7.8 TON 12,752 11,016 9,219 - - -
24*8*31 10 3 x 31 TON 3 x 38.8 TON 3 x 8.7 TON 13,702 11,808 9,846 - - -
32*8 STORAGE BIN POWDERED
32*8*3.1 1 4 x 3.1 TON 4 x 3.9 TON 4 x 0.9 TON 6,751 6,135 5,497 - - -
32*8*6.2 2 4 x 6.2 TON 4 x 7.8 TON 4 x 1.7 TON 8,001 7,176 6,322 - - -
32*8*9.3 3 4 x 9.3 TON 4 x 11.6 TON 4 x 2.6 TON 9,251 8,218 7,147 - - -
32*8*12.4 4 4 x 12.4 TON 4 x 15.5 TON 4 x 3.5 TON 10,501 9,259 7,972 - - -
32*8*15.5 5 4 x 15.5 TON 4 x 19.4 TON 4 x 4.4 TON 11,751 10,300 8,797 - - -
32*8*18.6 6 4 x 18.6 TON 4 x 23.3 TON 4 x 5.2 TON 13,001 11,341 9,622 - - -
32*8*21.7 7 4 x 21.7 TON 4 x 27.1 TON 4 x 6.1 TON 14,251 12,383 10,447 - - -
32*8*24.8 8 4 x 24.8 TON 4 x 31 TON 4 x 7 TON 15,501 13,424 11,272 - - -
32*8*27.9 9 4 x 27.9 TON 4 x 34.9 TON 4 x 7.8 TON 16,751 14,465 12,097 - - -
32*8*31 10 4 x 31 TON 4 x 38.8 TON 4 x 8.7 TON 18,001 15,506 12,922 - - -
2*12 STORAGE BIN POWDERED
12*12*3.5 1 8 TON 10 TON - 4,454 4,118 3,837 - - -
12*12*7 2 16 TON 20 TON - 5,093 4,709 4,359 - - -
12*12*10.5 3 24 TON 30 TON - 5,732 5,300 4,881 - - -
12*12*14 4 32 TON 40 TON - 6,371 5,830 5,403 - - -
12*12*17.5 5 40 TON 50 TON 11 TON 7,010 6,421 5,925 7,010 6,421 5,925
12*12*21 6 48 TON 60 TON 13 TON 7,649 7,012 6,447 7,649 7,012 6,447
12*12*24.5 7 56 TON 70 TON 16 TON 8,288 7,603 6,969 8,288 7,603 6,969
12*12*28 8 64 TON 80 TON 18 TON 8,927 8,194 7,491 8,927 8,194 7,491
12*12*31.5 9 72 TON 90 TON 20 TON 9,566 8,785 8,013 9,566 8,785 8,013
12*12*35 10 80 TON 100 TON - 10,205 9,376 8,535 - - -
24*12 STORAGE BIN POWDERED
24*12*3.5 1 2 x 8 TON 2 x 10 TON - 8,010 7,317 6,861 - - -
24*12*7 2 2 x 16 TON 2 x 20 TON - 9 ,170 8,417 7,811 - - -
24*12*10.5 3 2 x 24 TON 2 x 30 TON - 10,330 9,517 8,761 - - -
24*12*14 4 2 x 32 TON 2 x 40 TON - 11,490 10,617 9,711 - - -
24*12*17.5 5 2 x 40 TON 2 x 50 TON 2 x 11 TON 12,650 11,717 10,661 12,200 11,200 10,200
24*12*21 6 2 x 48 TON 2 x 60 TON 2 x 13 TON 13,810 12,817 11,611 13,200 12,200 11,200
24*12*24.5 7 2 x 56 TON 2 x 70 TON 2 x 16 TON 14,970 13,917 12,561 14,200 13,200 12,000
24*12*28 8 2 x 64 TON 2 x 80 TON 2 x 18 TON 16,130 15,017 13,511 15,200 14,200 13,000
24*12*31.5 9 2 x 72 TON 2 x 90 TON - 17,290 16,117 14,461 - - -
24*12*35 10 2 x 80 TON 2 x 100 TON - 18,450 17,217 15,411 - - -
36*12 STORAGE BIN POWDERED
36*12*17.5 5 - - 3 x 11 TON - - - 17,840 15,560 13,440
36*12*21 6 - - 3 x 13 TON - - - 19,500 17,000 14,500
36*12*24.5 7 - - 3 x 16 TON - - - 21,200 18,300 15,700
48*12 STORAGE BIN POWDERED
48*12*3.5 1 4 x 8 TON 4 x 10 TON - 15,006 13,608 12,752 - - -
48*12*7 2 4 x 16 TON 4 x 20 TON - 17,171 15,598 14,602 - - -
48*12*10.5 3 4 x 24 TON 4 x 30 TON - 19,336 17,588 16,452 - - -
48*12*14 4 4 x 32 TON 4 x 40 TON - 21,501 19,578 18,302 - - -
48*12*17.5 5 4 x 40 TON 4 x 50 TON - ### 21,568 20,152 - - -
48*12*21 6 4 x 48 TON 4 x 60 TON - 25,831 23,558 22,002 - - -
48*12*24.5 7 4 x 56 TON 4 x 70 TON - 27,996 25,548 23,852 - - -
48*12*28 8 4 x 64 TON 4 x 80 TON - 30,161 27,538 25,702 - - -
48*12*31.5 9 4 x 72 TON 4 x 90 TON - 32,326 29,528 27,552 - - -
48*12*35 10 4 x 80 TON 4 x 100 TON - 34,491 31,518 29,402 - - -
