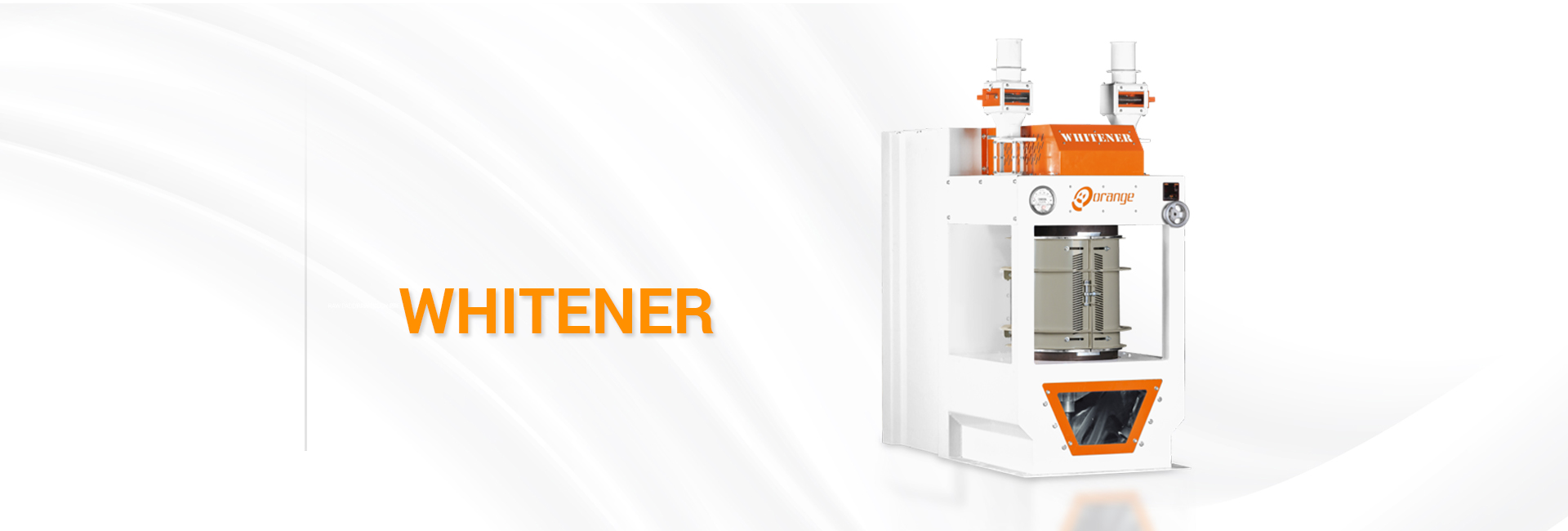

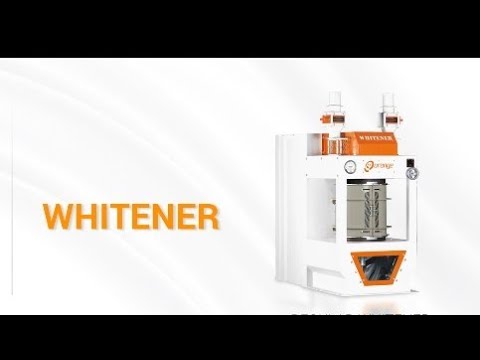

Whitener is otherwise known an abrasive polisher. This is a technique used to remove a layer of bran from rice by polishing using rough stones. The rice is gently passed through the abrasion chamber between specific silicon carbide stones and, by this process, the brown rice turns white. The removed bran is collected by the attached external suction blower.
Green silicon carbide and Black Silicon carbide are used. Stones are used based on type of processed rice
Hardened Steel is used for longer self-life, and multiple range of perforation for multiple combinations.
Machine is designed to feed rice from top bran is removed in the middle and collected at the bottom
Maintaining proper chamber pressure is one of the key feature to be ensured at the time of machine startup.
Blade/ Knife made with EN8 material for extended self life and uniform whiteness.
Quick and easy replaceable screen with sieves. minimum wear and tear parts.
Paddy/Rice
| Hybrid Model | Regular Model | |||||
|---|---|---|---|---|---|---|
| Model | WTH03 | WTH04 | WTR03 | WTR04 | WTR06 | WTR08 |
| Capacity (TPH) | 2.5 to 3 | 3 to 4 | 2.5 to 3 | 3 to 4 | 5 to 6 | 7 to 8 |
| Motor Power (HP) | 25 | 30 | 30 | 40 | 50 | 60 |
| Motor RPM | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Abrasive Stone count | 6 | 6 | 6 | 6 | 6 | 6 |
| Stone Dimentions (Dia x Thickness) | 310 x 60 | 310 x 60 | 310 x 60 | 310 x 60 | 310 x 90 | 310 x 90 |
| Total Screens | 3 | 3 | 3 | 3 | 3 | 3 |
| Whitener Screen Size | 478 | 478 | 432 | 478 | 621 | 621 |
| Weight (Kg) | 800 | 850 | 900 | 350 | 1600 | 1700 |
| Dimension LxBxH (mm) | 1020 x 500 x 1600 | 1020 x 500 x 1600 | 1445 x 620 x 1610 | 1445 X 620 X 1610 | 1650 X 800 X 1700 | 1650 X 800 X 1700 |
| Blower Motor Power (KW/HP) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 10 |
| Magnet (inches) | 5" | 5" | 4"(2 nos) | 4"(2 nos) | 4"(2 nos) | 4"(2 nos) |
| Cyclone | 950 | 950 | 950 | 950 | 950 | 1100 |
| Bran discharger | 8" & 1.5 HP | 8" & 1.5 HP | 8" & 1.5 HP | 8" & 1.5 HP | 8" & 1.5 HP | 8" & 1.5 HP |
| Magnet (inches) | 5" | 5" | 4" (2 nos) | 4" (2 nos) | 4" (2 nos) | 4" (2 nos) |
*Note : This content is shown for Paddy.
Brown Rice
Semi Polished Rice
Rice Bran
